AMX - 1412 :

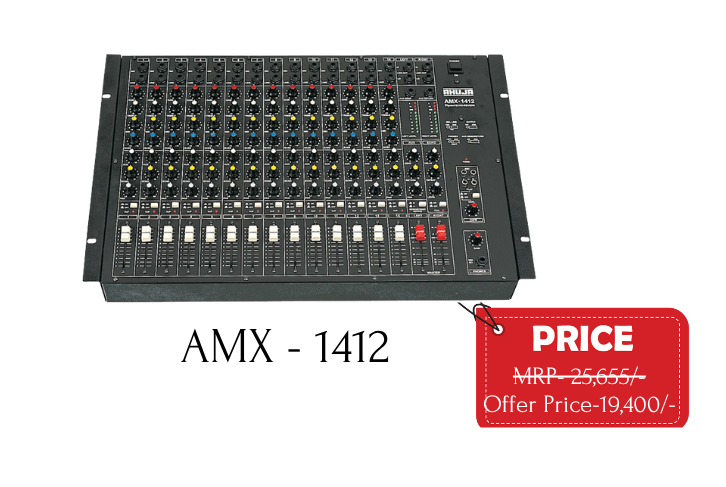

Ahuja AMX-1412 Professional Audio Mixer
Features
Professional 14-channel audio mixer designed for live sound, studio, and installation applications.
10 mono mic/line inputs and 2 stereo inputs for versatile connectivity.
Built-in 24-bit digital effects processor with 16 preset effects (reverb, delay, chorus, etc.).
USB digital player/recorder for direct playback and recording of MP3 files from pen drives.
Each mono channel features 3-band EQ (High, Mid, Low) for precise tone shaping.
AUX and EFX sends on all channels for monitor and external effects routing.
Balanced XLR and ¼” jack combo inputs for professional microphones and instruments.
Phantom power (+48V) switchable for condenser microphones.
Balanced main outputs (XLR) and control room outputs for monitoring.
Rugged metal body ensures durability for continuous professional use.
Specifications
| Parameter | Details |
|---|---|
| Total Input Channels | 14 (10 Mono Mic/Line + 2 Stereo Line) |
| Microphone Inputs | Balanced XLR / ¼” Combo Jack |
| Stereo Inputs | 2 × RCA / ¼” Stereo Inputs |
| Equalizer (Mono Channels) | 3-Band EQ: High (12kHz), Mid (2.5kHz), Low (80Hz) |
| Digital Effects Processor | 24-bit DSP with 16 Preset Effects |
| USB Player/Recorder | Built-in MP3 Player & Recorder |
| Phantom Power | +48V (Global Switchable) |
| AUX Sends | 2 (Pre/Post Selectable) |
| EFX Send | 1 (Post Fader) |
| Main Outputs | Balanced XLR (L/R) |
| Control Room Output | Stereo ¼” Jack |
| Headphone Output | Stereo ¼” Jack with Level Control |
| Frequency Response | 20Hz – 20kHz (±1dB) |
| THD | < 0.1% |
| Power Supply | AC 220–240V, 50/60Hz |
| Dimensions (W×H×D) | 482 × 105 × 400 mm (approx.) |
| Weight | Approx. 5.8 kg |
