AMX - 912 DP:

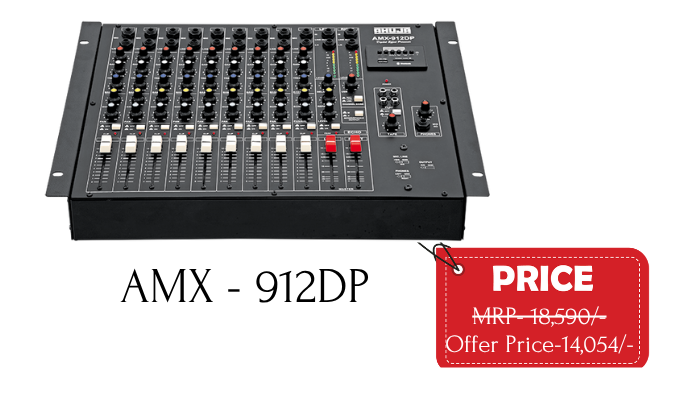

Ahuja AMX-912DP Professional Audio Mixer
Features
Professional 9-channel digital powered mixer with integrated amplifier.
6 mono mic/line inputs and 2 stereo line inputs for versatile connections.
Built-in high-quality 24-bit digital effects processor with multiple presets.
Integrated USB/SD digital audio player for MP3 playback and recording.
Each mono channel has 3-band EQ (High, Mid, Low) and gain control.
Balanced XLR and ¼” combo inputs with switchable +48V phantom power for condenser microphones.
AUX and EFX sends for stage monitoring and external effects routing.
Balanced XLR master outputs for professional PA setups.
Compact, rugged metal chassis ideal for portable sound systems and live performances.
Built-in power amplifier eliminates the need for external amps in smaller setups.
Specifications
| Parameter | Details |
|---|---|
| Total Input Channels | 9 (6 Mono Mic/Line + 2 Stereo Line) |
| Microphone Inputs | Balanced XLR / ¼” Combo Jack |
| Stereo Inputs | RCA / ¼” Stereo Inputs |
| Equalizer (Mono Channels) | 3-Band EQ (High 12kHz, Mid 2.5kHz, Low 80Hz) |
| Digital Effects Processor | 24-bit DSP with Preset Effects |
| Built-in Player | USB/SD MP3 Player & Recorder |
| Phantom Power | +48V (Global Switchable) |
| AUX Send | 1 (Pre/Post Selectable) |
| EFX Send | 1 (Post Fader) |
| Master Output | Balanced XLR (L/R) |
| Amplifier Output Power | 2 × 400W @ 4Ω / 2 × 250W @ 8Ω |
| Frequency Response | 20Hz – 20kHz (±1dB) |
| THD | < 0.1% |
| Power Supply | AC 220–240V, 50/60Hz |
| Dimensions (W×H×D) | 420 × 130 × 360 mm (approx.) |
| Weight | Approx. 8.5 kg |
