DUAL CHANNEL POWER AMPLIFIER WITH DIGITAL PLAYER:

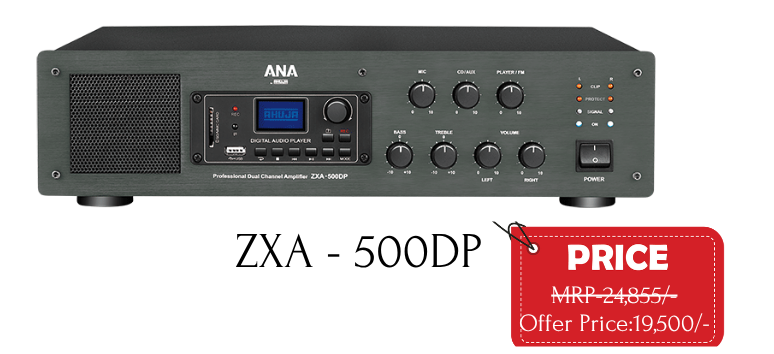

Ahuja ZXA-500DP Dual Channel Power Amplifier
Features
Professional dual-channel amplifier for high-quality PA and music applications.
Delivers 500 watts total output (250W + 250W).
Built-in MP3 player with USB, SD/MMC, Bluetooth, and FM radio.
Separate bass and treble controls for tonal adjustment.
Advanced protection circuits for temperature, DC fault, RFI, short circuit, and limiter.
Dual-channel outputs with heavy-duty terminals.
Dual-fan cooling system with temperature sensing.
Rugged and reliable design suitable for continuous operation.
Specifications
| Parameter | Details |
|---|---|
| Continuous Rated Output | 8Ω: 100W + 100W RMS 4Ω: 180W + 180W RMS 2Ω: 250W + 250W RMS |
| Total Power Output | 500W (250 + 250 W) |
| THD + Noise | < 1.0% |
| Frequency Response | 20 Hz – 20 kHz |
| Input Sensitivity | Mic: 5 mV / 4.7 kΩ CD/Aux: 250 mV / 10 kΩ |
| Signal-to-Noise Ratio | > 65 dB |
| Tone Controls | Bass: ±10 dB @ 100 Hz Treble: ±10 dB @ 10 kHz |
| Channel Separation | > 60 dB @ 1 kHz |
| Line Output | 1V / 1 kΩ (L & R) |
| Power Consumption | 600 VA @ 220–240V AC, 50/60 Hz |
| Dimensions (W×H×D) | 393 × 108 × 375 mm |
| Weight | Approx. 10.5 kg |
