FMX - 106DP :

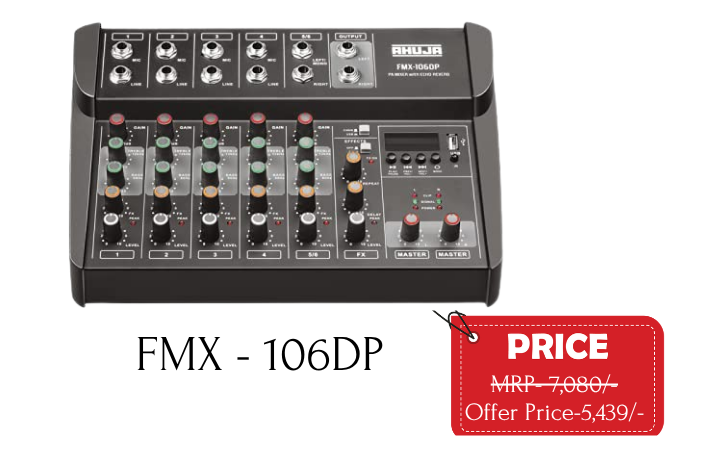

Ahuja FMX-106DP Professional Audio Mixer
Features
Compact 6-channel professional audio mixer with built-in digital effects processor and USB player/recorder.
4 mono mic/line inputs and 1 stereo input — ideal for microphones, instruments, and playback sources.
Integrated 24-bit DSP effects processor with multiple reverb, echo, and delay presets.
USB MP3 player and recorder for convenient music playback and live recording.
Each channel features 3-band EQ (High, Mid, Low), gain, and level controls for precise sound shaping.
Balanced XLR and ¼” combo inputs with +48V phantom power support condenser microphones.
AUX and EFX sends for monitor mixes and external effects routing.
Balanced XLR main outputs for clean professional audio output.
LED level meter and headphone output for monitoring.
Lightweight and rugged metal construction, perfect for small events, studios, and portable PA setups.
Specifications
| Parameter | Details |
|---|---|
| Total Input Channels | 6 (4 Mono Mic/Line + 1 Stereo Line) |
| Microphone Inputs | Balanced XLR / ¼” Combo Jack |
| Stereo Inputs | RCA / ¼” Stereo Inputs |
| Equalizer (Mono Channels) | 3-Band EQ (High 12kHz, Mid 2.5kHz, Low 80Hz) |
| Digital Effects Processor | 24-bit DSP with Preset Effects |
| Built-in Player | USB MP3 Player & Recorder |
| Phantom Power | +48V (Global Switchable) |
| AUX Send | 1 (Pre/Post Selectable) |
| EFX Send | 1 (Post Fader) |
| Main Outputs | Balanced XLR (L/R) |
| Control Room Output | Stereo ¼” Jack |
| Headphone Output | Stereo ¼” Jack with Level Control |
| Frequency Response | 20Hz – 20kHz (±1dB) |
| THD | < 0.1% |
| Power Supply | AC 220–240V, 50/60Hz |
| Dimensions (W×H×D) | 320 × 100 × 280 mm (approx.) |
| Weight | Approx. 4.8 kg |
