FMX - 108 DP :

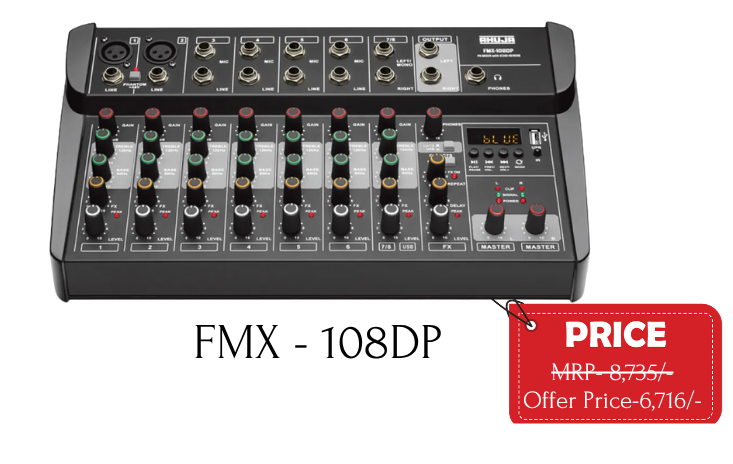

Ahuja FMX-108DP Professional Audio Mixer
Features
Compact 8-channel professional audio mixer with built-in digital effects processor and USB player.
6 mono mic/line inputs and 1 stereo input for microphones, instruments, and external audio devices.
High-quality 24-bit DSP effects with reverb, delay, and echo presets for live or studio use.
Built-in USB MP3 player and recorder with track controls for easy playback and recording.
Each channel equipped with 3-band EQ (High, Mid, Low) and independent level controls.
Balanced XLR and ¼” combo inputs with switchable +48V phantom power for condenser microphones.
AUX and EFX sends for monitor mixes and external processors.
Balanced XLR main outputs provide professional-quality sound output.
LED level meter for output monitoring and headphone jack for preview listening.
Compact, lightweight, and rugged metal body — ideal for live performances, studios, houses of worship, and small PA systems.
Specifications
| Parameter | Details |
|---|---|
| Total Input Channels | 8 (6 Mono Mic/Line + 1 Stereo Line) |
| Microphone Inputs | Balanced XLR / ¼” Combo Jack |
| Stereo Inputs | RCA / ¼” Stereo Inputs |
| Equalizer (Mono Channels) | 3-Band EQ (High 12kHz, Mid 2.5kHz, Low 80Hz) |
| Digital Effects Processor | 24-bit DSP with Preset Effects |
| Built-in Player | USB MP3 Player & Recorder |
| Phantom Power | +48V (Global Switchable) |
| AUX Send | 1 (Pre/Post Selectable) |
| EFX Send | 1 (Post Fader) |
| Main Outputs | Balanced XLR (L/R) |
| Control Room Output | Stereo ¼” Jack |
| Headphone Output | Stereo ¼” Jack with Level Control |
| Frequency Response | 20Hz – 20kHz (±1dB) |
| THD | < 0.1% |
| Power Supply | AC 220–240V, 50/60Hz |
| Dimensions (W×H×D) | 370 × 105 × 300 mm (approx.) |
| Weight | Approx. 5.2 kg |
