FMX - 212PRO:

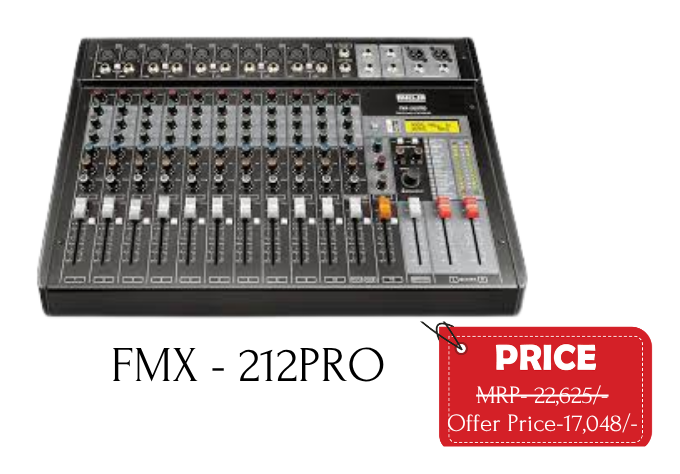

Ahuja FMX-212 PRO Professional Audio Mixer
Features
Professional 12-channel live and studio audio mixer with high-quality sound performance.
8 mono mic/line inputs and 2 stereo inputs provide flexible connectivity for microphones, instruments, and playback devices.
Built-in 24-bit digital effects processor with a range of reverb, delay, and echo presets.
USB/SD MP3 player and recorder for convenient audio playback and recording.
Each mono channel features 3-band EQ (High, Mid, Low), gain, and level controls for detailed sound shaping.
Balanced XLR and ¼” combo inputs with switchable +48V phantom power for condenser microphones.
AUX and EFX sends for monitor mixes and external effects routing.
Balanced XLR master outputs ensure clean and professional-level signal output.
LED level meter and headphone monitoring for precise control during mixing.
Sturdy metal chassis suitable for live performances, studios, schools, and event installations.
Specifications
| Parameter | Details |
|---|---|
| Total Input Channels | 12 (8 Mono Mic/Line + 2 Stereo Line) |
| Microphone Inputs | Balanced XLR / ¼” Combo Jack |
| Stereo Inputs | RCA / ¼” Stereo Inputs |
| Equalizer (Mono Channels) | 3-Band EQ (High 12kHz, Mid 2.5kHz, Low 80Hz) |
| Digital Effects Processor | 24-bit DSP with Preset Effects |
| Built-in Player | USB/SD MP3 Player & Recorder |
| Phantom Power | +48V (Global Switchable) |
| AUX Send | 1 (Pre/Post Selectable) |
| EFX Send | 1 (Post Fader) |
| Main Outputs | Balanced XLR (L/R) |
| Control Room Output | Stereo ¼” Jack |
| Headphone Output | Stereo ¼” Jack with Level Control |
| Frequency Response | 20Hz – 20kHz (±1dB) |
| THD | < 0.1% |
| Power Supply | AC 220–240V, 50/60Hz |
| Dimensions (W×H×D) | 480 × 120 × 400 mm (approx.) |
| Weight | Approx. 7.5 kg |
