LXA - 2400:

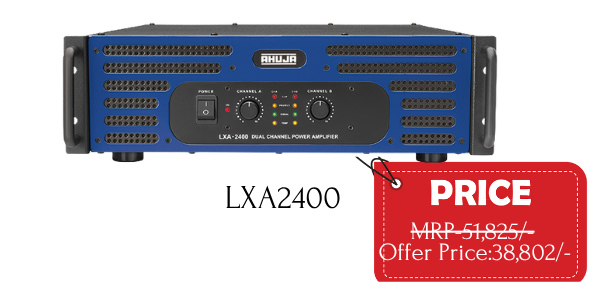

🔹 Ahuja LXA-2400 – Professional Power Amplifier
Specifications
| Parameter | Details |
|---|---|
| Model | LXA-2400 |
| Type | Dual-channel direct-coupled amplifier |
| Rated Output (Stereo/Mono) | 600W + 600W @ 8Ω 850W + 850W @ 4Ω 1200W + 1200W @ 2Ω |
| Bridged Output | 1700W @ 8Ω 2400W @ 4Ω |
| Total Rated Output | 2400W |
| Frequency Response (-1 dB) | 20 Hz – 20,000 Hz |
| Power Bandwidth (0.5% THD) | 20 Hz – 20,000 Hz |
| Total Harmonic Distortion (THD + N) | < 1.0% |
| Input Sensitivity | 0 dBu (775 mV), 4 dBu (1.23 V) – selectable |
| Input Impedance | 10 kΩ (unbalanced), 20 kΩ (balanced) |
| Signal-to-Noise Ratio | > 95 dB |
| Channel Separation | > 65 dB at 1 kHz |
| Damping Factor | 400:1 @ 8Ω |
| Slew Rate | 35 V/µs |
| Protection Features | Thermal, DC, RFI, short circuit, overload, built-in limiter |
| Input Connectors | 2 × XLR, 6.3 mm stereo phone jack |
| Output Connectors | Speakon 4-way, heavy-duty binding posts |
| Cooling | Variable-speed DC fan with temperature sensing |
| Front Panel Controls | 2 × 41-step level attenuators |
| Indicators | Power ON, Signal, Clip, Temperature, Protect (for each channel) |
| Power Consumption (Rated) | 2700 VA @ 220–240 V AC, 50/60 Hz |
| Dimensions (W × H × D) | 482 mm × 153 mm × 550 mm |
| Weight | 28.7 kg |
Key Features
Class H Operation: Ensures optimum efficiency and high-fidelity sound reproduction.
High Output Power: Capable of delivering up to 2400W, suitable for large venues and professional audio setups.
Selectable Input Sensitivity: Offers flexibility to match various audio sources.
Comprehensive Protection: Includes thermal, DC, RFI, short circuit, overload protections, and a built-in limiter to safeguard the amplifier and connected equipment.
Rugged Design: Built to withstand continuous operation under stringent conditions, making it ideal for high-end music programs and professional use.
