MMX - 55 :

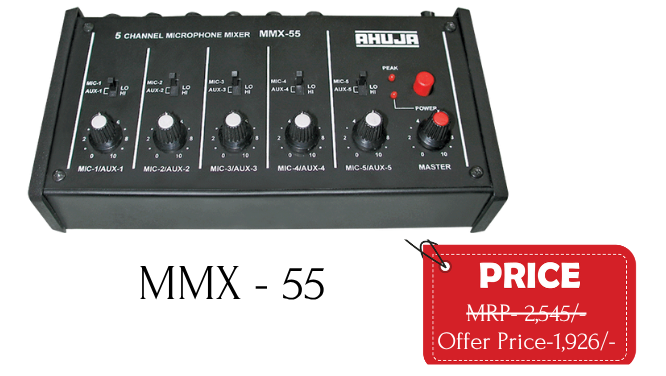

Ahuja MMX-55 Professional Audio Mixer
Features
Compact 5-channel professional audio mixer designed for small PA setups, studios, and live performances.
4 mono mic/line inputs and 1 stereo input for microphones, instruments, and playback devices.
Each mono channel equipped with 2-band EQ (High, Low) and independent level control.
Balanced XLR and ¼” jack inputs ensure high-quality and noise-free signal handling.
Master output level control with LED level indication.
Phantom power (+15V) provided for condenser microphones.
AUX send available for connecting external effects or monitor systems.
Headphone output with volume control for monitoring.
Rugged and compact metal chassis — ideal for small gatherings, presentations, houses of worship, and music practice setups.
Specifications
| Parameter | Details |
|---|---|
| Total Input Channels | 5 (4 Mono Mic/Line + 1 Stereo Line) |
| Microphone Inputs | Balanced XLR / ¼” Jack |
| Stereo Inputs | RCA / ¼” Stereo Inputs |
| Equalizer (Mono Channels) | 2-Band EQ (High 10kHz, Low 100Hz) |
| AUX Send | 1 |
| Phantom Power | +15V DC (Switchable) |
| Main Outputs | ¼” Jack (L/R) |
| Headphone Output | ¼” Stereo Jack |
| Frequency Response | 20Hz – 20kHz (±1dB) |
| THD | < 0.1% |
| Power Supply | AC 220–240V, 50/60Hz |
| Dimensions (W×H×D) | 270 × 80 × 210 mm (approx.) |
| Weight | Approx. 2.5 kg |
