PA - 200DS:

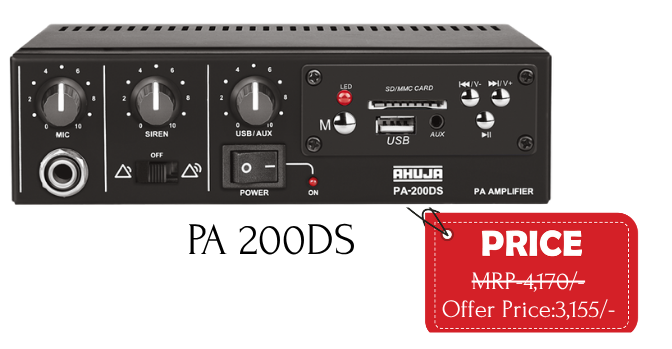

🔊 Ahuja PS‑200DS – 20W Mobile PA Mixer Amplifier
✅ Features
30W Max., 20W RMS at 10% THD output — perfect for mobile PA applications.
1 microphone input and 1 auxiliary input for versatile connectivity.
Built-in MP3 player with USB & SD/MMC card reader; 3.5 mm AUX input.
Two-tone siren (Wailing & Yelping) with adjustable volume for emergency announcements.
Tone control for basic audio adjustment.
Speaker output for 4Ω and 8Ω speakers.
Operates on 12V DC (car battery) for mobile or vehicle use.
Compact and lightweight; DIN standard mounting bracket supplied.
📊 Specifications
| Parameter | Details |
|---|---|
| Power Output | 30W Max, 20W RMS at 10% THD |
| Microphone Input | 1 × Mic (5.0 mV / 4.7 kΩ) |
| Auxiliary Input | 1 × Aux (100 mV / 330 kΩ) |
| Digital Player | Built-in MP3 player with USB & SD/MMC card reader, 3.5 mm AUX input |
| Frequency Response | 250–10,000 Hz ±3 dB |
| Signal-to-Noise Ratio | ≥ 60 dB |
| Siren Function | Two-tone siren (Wailing & Yelping) with volume control |
| Speaker Outputs | 4Ω / 20W, 8Ω / 12W |
| Power Supply | 12V DC (Car Battery) |
| Mounting | DIN standard size, amplifier mounting bracket supplied |
| Dimensions (W×H×D) | 178 × 52 × 157 mm |
| Weight | 1.10 kg (with mounting clamp) |
