PMX - 1032DFX :

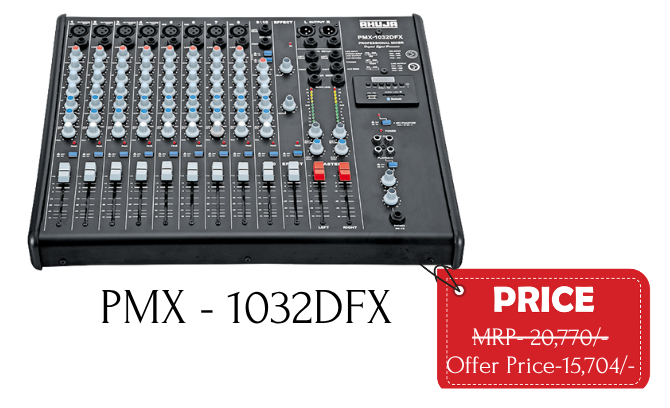

Ahuja PMX-1032DFX Professional Audio Mixer
Features
Professional 10-channel audio mixer with built-in 24-bit digital effects processor and USB MP3 player.
Designed for live sound, recording, conferences, and stage performances.
8 mono mic/line inputs and 2 stereo inputs for flexible operation.
Built-in USB digital player for direct playback of MP3 files from pen drives.
High-quality 24-bit DSP effects processor with 16 preset effects like reverb, delay, chorus, etc.
3-band EQ (High, Mid, Low) on all mono channels for precise tonal adjustment.
Balanced XLR and ¼” jack combo inputs for microphones and instruments.
AUX and EFX sends on every channel for monitor and effects routing.
Phantom power (+48V) switchable for condenser microphones.
Rugged, durable chassis designed for reliable performance in professional environments.
Specifications
| Parameter | Details |
|---|---|
| Total Input Channels | 10 (8 Mono Mic/Line + 2 Stereo Line) |
| Microphone Inputs | Balanced XLR / ¼” Combo Jack |
| Stereo Inputs | 2 × RCA / ¼” Stereo Inputs |
| Equalizer (Mono Channels) | 3-Band EQ: High (12kHz), Mid (2.5kHz), Low (80Hz) |
| Digital Effects Processor | 24-bit DSP with 16 Preset Effects |
| USB Player | Built-in MP3 Player with LCD Display |
| Phantom Power | +48V (Global Switch) |
| AUX Send | 1 (Pre/Post Selectable) |
| EFX Send | 1 (Post Fader) |
| Main Outputs | Balanced XLR (L/R) |
| Control Room Output | Stereo ¼” Jack |
| Headphone Output | Stereo ¼” Jack with Level Control |
| Frequency Response | 20Hz – 20kHz (±1dB) |
| THD | < 0.1% |
| Power Supply | AC 220–240V, 50/60Hz |
| Dimensions (W×H×D) | 482 × 105 × 360 mm (approx.) |
| Weight | Approx. 5.2 kg |
