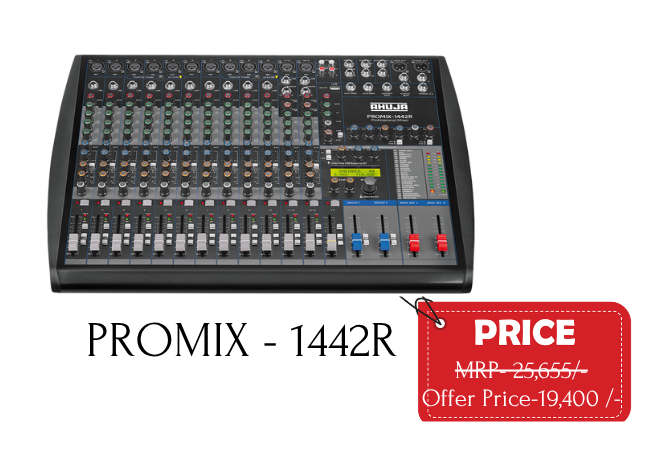

Ahuja PROMIX-1442R Professional Audio Mixer
Features
Professional-grade 14-channel audio mixer with digital echo and USB MP3 player.
Designed for stage, studio, and live sound reinforcement applications.
10 mono mic/line inputs and 2 stereo line inputs for flexible connectivity.
Built-in USB digital media player for direct playback of MP3 files from pen drives.
High-quality digital echo processor with adjustable delay and repeat controls.
3-band EQ (High, Mid, Low) on each mono channel for precise tonal shaping.
Individual Gain, Pan, and Level controls on all input channels.
Balanced XLR and unbalanced ¼” jack inputs for professional mic and line sources.
Main L/R output with balanced XLR connectors and control room/headphone outputs.
Rugged metal chassis designed for reliability in continuous professional use.
Specifications
| Parameter | Details |
|---|---|
| Total Input Channels | 14 (10 Mono Mic/Line + 2 Stereo Line) |
| Microphone Inputs | Balanced XLR / ¼” Jack Combo Inputs |
| Stereo Inputs | 2 × RCA Stereo Line Inputs |
| USB Player | Built-in MP3 Player with LCD Display |
| Effects Processor | Digital Echo with Delay & Repeat Control |
| Equalizer (Mono Channels) | 3-Band EQ: High (12kHz), Mid (2.5kHz), Low (80Hz) |
| Phantom Power | +48V (Global Switchable) |
| Main Outputs | Balanced XLR & ¼” Jack |
| Control Room Output | Stereo ¼” Jack |
| Headphone Output | Stereo ¼” Jack with Level Control |
| Frequency Response | 20Hz – 20kHz (±1dB) |
| THD | < 0.1% |
| Power Supply | AC 220–240V, 50/60Hz |
| Dimensions (W×H×D) | 482 × 105 × 360 mm (approx.) |
| Weight | Approx. 5.5 kg |
