SPA 10000:

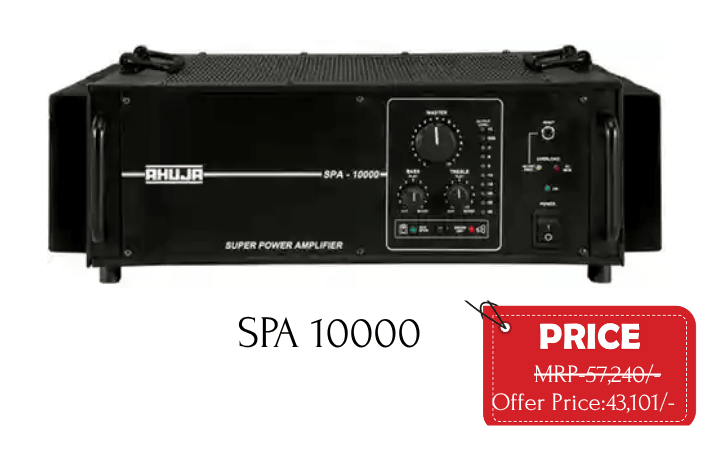

🔊 Ahuja SPA-10000 High Power PA Amplifier
✅ Key Features
High-performance dual-channel power amplifier for professional sound applications.
Suitable for large auditoriums, open grounds, and event setups requiring powerful, clear sound.
Delivers clean and distortion-free audio output even at high power levels.
Operates in both stereo and bridge modes for flexible configurations.
Balanced XLR and 6.3 mm TRS inputs for compatibility with mixers and processors.
Comprehensive protection against short circuit, DC fault, and overheating.
Dual cooling fans with variable speed for efficient temperature control.
LED indicators for Power, Signal, Clip, and Protect for easy status monitoring.
Durable 19″ rack-mountable steel chassis for professional installations.
📊 Specifications
| Parameter | Details |
|---|---|
| Power Output | 1000 W RMS per channel at 4 Ω 700 W RMS per channel at 8 Ω |
| Configuration | Dual-channel (Stereo/Bridgeable) |
| Input Sensitivity | 1 V / 10 kΩ (balanced and unbalanced) |
| Frequency Response | 20 Hz – 20 kHz (±1 dB) |
| Total Harmonic Distortion (THD) | ≤ 0.1% at 1 kHz, full rated power |
| Signal-to-Noise Ratio | ≥ 90 dB |
| Damping Factor | ≥ 250 (at 8 Ω, 1 kHz) |
| Cooling System | Dual forced-air cooling with temperature sensing |
| Protection Circuits | DC fault, overload, short circuit, and thermal protection |
| Indicators | Power, Signal, Clip, Protect |
| Power Supply | AC 230 V ±10%, 50/60 Hz |
| Dimensions (W × H × D) | 483 mm × 133 mm × 480 mm |
| Weight | Approx. 26 kg |
