SSA - 100 M:

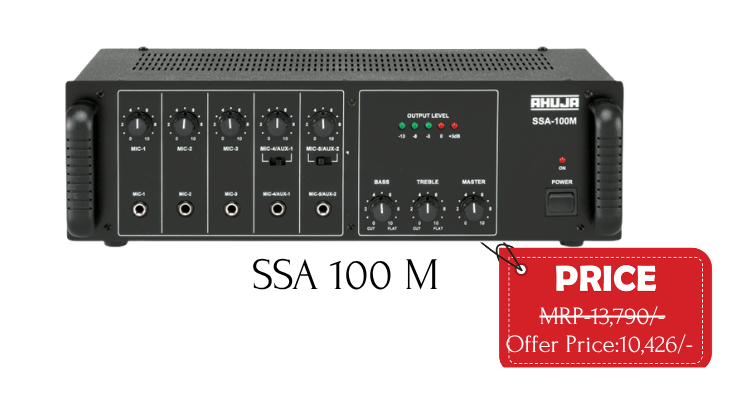

🔊 Ahuja SSA-100M Medium Wattage PA Mixer Amplifier
✅ Key Features
5 microphone inputs + 2 auxiliary inputs — suitable for announcements, background music, public address.
Preamplifier and Line Output provided for connecting a booster amplifier or for recording the programme.
Instant transfer to DC power (via car battery) if AC mains fails — ensures reliable backup operation.
Cut-type Bass & Treble tone controls for simple tonal adjustment.
Supports multiple speaker output taps (4 Ω, 8 Ω, 16 Ω, 70 V & 100 V) — flexible for various installations.
📊 Specifications
| Parameter | Details |
|---|---|
| Power Output | 130 W Max, 100 W RMS at 10% THD; 90 W RMS at 5% THD; 80 W RMS at 2% THD |
| Output Regulation | ≤ 2 dB (no load → full load @ 1 kHz) |
| Input Channels | 5 × Mic (0.65 mV / 4.7 kΩ) 1 × Aux (50 mV / 470 kΩ) 1 × Aux (150 mV / 470 kΩ) |
| Frequency Response | 50 Hz – 15,000 Hz (±3 dB) |
| Signal-to-Noise Ratio | ≥ 60 dB |
| Tone Controls | Bass: –10 dB at 100 Hz Treble: –10 dB at 10 kHz |
| Outputs | Preamp: 200 mV / 600 Ω Line: 1 V / 1 kΩ |
| Speaker Outputs | 4 Ω, 8 Ω, 16 Ω, 70 V & 100 V |
| Power Supply | AC: 220–240 V, 50/60 Hz DC: 24 V (2 × 12 V car battery) |
| Power Consumption | AC: 220 VA DC: 3 A |
| Dimensions (W × H × D) | 420 mm × 135 mm × 290 mm |
| Weight | Approx. 10.5 kg |
