SSA - 10000 :

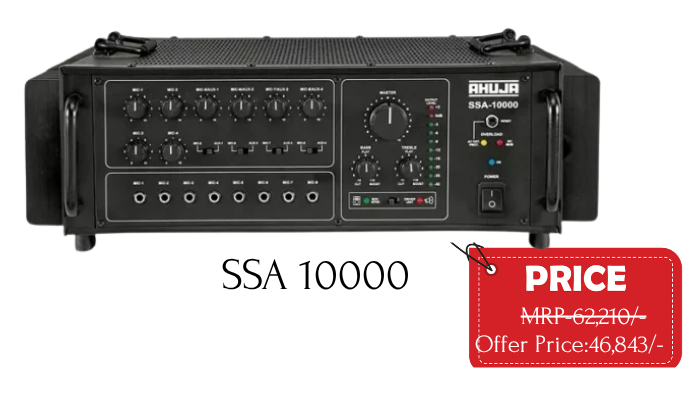

Ahuja SSA-10000 High Wattage PA Power Amplifier
Key Features
-
High-power professional PA amplifier ideal for large venues, auditoriums, and outdoor installations.
-
Designed to deliver clear, distortion-free sound even at maximum output levels.
-
Switchable input between 200 mV and 1 V for compatibility with mixers or preamplifiers.
-
Includes 100 V input for connecting from another amplifier’s output line.
-
Resettable circuit breaker for protection against overload and short circuits.
-
Instant transfer to 48 V DC power (car batteries) in case of AC mains failure.
-
Speaker/Driver-unit selector switch for safer operation — bass boost automatically defeated in driver-unit mode.
-
Rugged and reliable design with heavy-duty build for professional installations.
Specifications
| Parameter | Details |
|---|---|
| Power Output | 1000 W RMS at 10% THD 850 W RMS at 5% THD 800 W RMS at 2% THD Maximum Output: approx. 1350 W |
| Output Regulation | ≤ 2 dB (no load to full load @ 1 kHz) |
| Input Channels | Line 1: 200 mV / 100 kΩ Line 2: 1 V / 50 kΩ 100 V Input available |
| Frequency Response | 50 Hz – 15,000 Hz (±3 dB) |
| Signal-to-Noise Ratio | ≥ 60 dB |
| Tone Controls | Bass (100 Hz): ±10 dB Treble (10 kHz): ±10 dB |
| Speaker Output Options | 2 Ω, 4 Ω, 70 V & 100 V |
| Power Supply | AC 220–240 V, 50/60 Hz DC 48 V (4 × 12 V car batteries) |
| Power Consumption | Approx. 1600 VA (AC) / 12 A (DC) |
| Dimensions (W × H × D) | 540 mm × 185 mm × 510 mm |
| Weight | Approx. 41 kg |
