SSA - 250 FX :

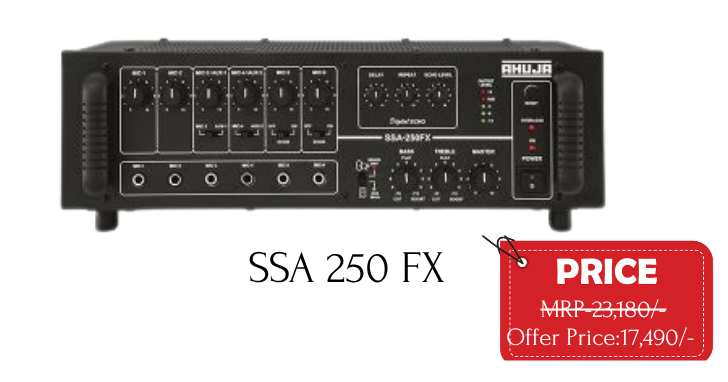

🔊 Ahuja SSA-250FX PA Mixer Amplifier
✅ Key Features
Powerful 250W PA mixer amplifier with 6 microphone inputs and 2 auxiliary inputs.
Two mic inputs have built-in digital echo effects, ideal for vocal clarity in events and functions.
Line input and line output provided for connecting a booster amplifier or recording equipment.
Speaker/Driver-unit selector switch disables bass boost when driving horn speakers, ensuring safer operation.
Automatically transfers to 24V DC (2 × 12V car batteries) during power failure for uninterrupted sound.
Equipped with resettable circuit breaker for overload and short-circuit protection.
Multiple speaker output taps — 4Ω, 8Ω, 70V, and 100V — for flexible installation setups.
Rugged, reliable design suitable for schools, auditoriums, religious places, and event halls.
📊 Specifications
| Parameter | Details |
|---|---|
| Power Output | 250 W RMS at 10% THD 220 W RMS at 5% THD 200 W RMS at 2% THD |
| Maximum Power Output | Approx. 300 W |
| Output Regulation | ≤ 2 dB (no load to full load @ 1 kHz) |
| Input Channels | 6 × Mic (0.65 mV / 4.7 kΩ) 2 × Aux (100 mV / 470 kΩ) Line (1 V / 50 kΩ) |
| Frequency Response | 50 Hz – 15,000 Hz (±3 dB) |
| Signal-to-Noise Ratio | ≥ 60 dB |
| Tone Controls | Bass (100 Hz): ±10 dB Treble (10 kHz): ±10 dB |
| Speaker Output Options | 4 Ω, 8 Ω, 70 V & 100 V |
| Power Supply | AC 220–240 V, 50/60 Hz DC 24 V (2 × 12 V car batteries) |
| Power Consumption | Approx. 460 VA (AC) / 6 A (DC) |
| Dimensions (W × H × D) | 450 mm × 160 mm × 340 mm |
| Weight | Approx. 15.7 kg |
