SSA - 5000DP:

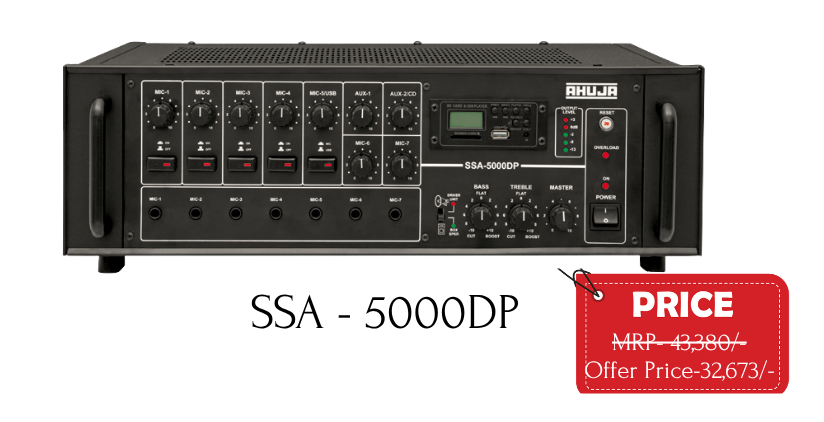

Ahuja SSA-5000DP High Power PA Mixer Amplifier
Features
High-power 5000-watt PA mixer amplifier designed for large installations and outdoor sound reinforcement.
Built-in digital player with USB, SD, and Bluetooth for convenient music playback.
8 microphone inputs (balanced/unbalanced) and 2 auxiliary inputs for maximum connectivity.
2 line outputs provided for connecting additional amplifiers.
Built-in digital delay effects processor ensures rich, clear sound output.
Bass, treble, and master volume controls for precise tonal adjustment.
Protective circuits for overload, short circuit, and thermal safety.
LED level indicators for visual output monitoring.
Designed for schools, auditoriums, religious places, and large gatherings.
Rugged construction for continuous long-duration operation.
Specifications
| Parameter | Details |
|---|---|
| Power Output | 5000W Max / 3500W RMS at 4Ω |
| Input Channels | 8 Mic Inputs, 2 Aux Inputs |
| Line Output | 2 Line Outputs |
| Digital Player | USB, SD, Bluetooth |
| Frequency Response | 50Hz – 15kHz ±3dB |
| Signal to Noise Ratio | > 60dB |
| Tone Controls | Bass ±10dB at 100Hz, Treble ±10dB at 10kHz |
| Protection | Short Circuit, Overload, Thermal |
| Cooling | Forced Air Cooling |
| Power Supply | AC 220–240V, 50/60Hz |
| Speaker Output | 4Ω, 8Ω, 70V & 100V Line |
| Dimensions (W×H×D) | 483 × 185 × 450 mm (approx.) |
| Weight | Approx. 36 kg |
