SSB - 45 EM :

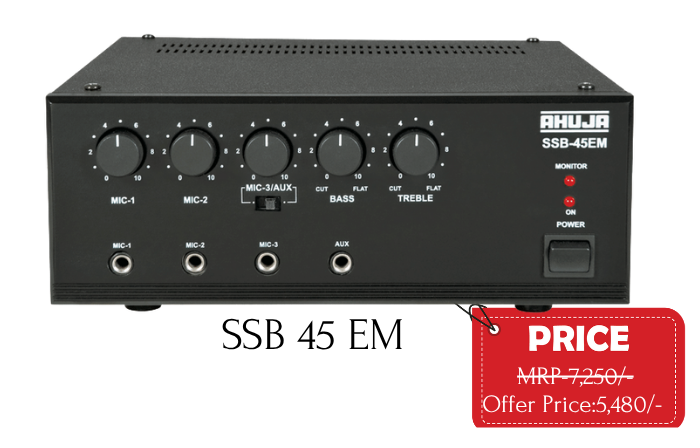

🔊 Ahuja SSB-45EM – PA Mixer Amplifier
✅ Features
45 W RMS output — ideal for small venues and gatherings.
Operates on both AC mains and 12 V car battery (auto-switch during power failure).
3 microphone inputs and 1 auxiliary input for versatile use.
Preamplifier output provided for connecting booster amplifiers or recording.
Bass and Treble controls for tone adjustment.
Suitable for both low-impedance and 100 V line speaker systems.
📊 Specifications
| Parameter | Details |
|---|---|
| Power Output | 45 W RMS @ 10% THD / 40 W RMS @ 5% THD |
| Maximum Output Power | 64 W (Max) |
| Output Regulation | ≤ 2 dB (no load to full load @ 1 kHz) |
| Input Channels | 3 × Mic (0.65 mV / 4.7 kΩ) 1 × Aux (100 mV / 470 kΩ) |
| Frequency Response | 100 Hz – 15,000 Hz (±3 dB) |
| Signal-to-Noise Ratio | ≥ 60 dB |
| Tone Controls | Bass: –10 dB @ 100 Hz Treble: –10 dB @ 10 kHz |
| Speaker Outputs | 4 Ω, 8 Ω, 16 Ω & 100 V |
| Power Supply | AC 220–240 V, 50/60 Hz / DC 12 V (Car Battery) |
| Power Consumption | AC ~110 VA / DC ~2 A |
| Dimensions (W×H×D) | 280 × 120 × 270 mm |
| Weight | Approx. 4.8 kg |
