TZA - 1500 DP:

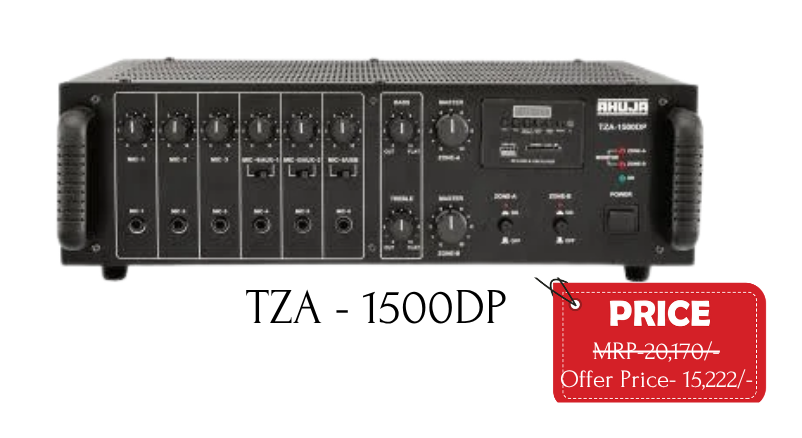

Ahuja TZA-1500DP High Power PA Mixer Amplifier
Features
150 Watts RMS PA mixer amplifier designed for medium to large installations and outdoor applications.
Built-in digital media player with USB, SD/MMC card reader, Bluetooth, and FM tuner.
Six microphone inputs and two auxiliary inputs for versatile usage.
Balanced line input and output provided for connecting external audio equipment.
Bass and Treble controls for tone customization.
LED-based output level indicator for precise level monitoring.
Built-in protection against short circuit, overload, and overheating.
Operates on both AC mains and 24V DC supply.
Rugged construction with an efficient cooling system ensures reliable performance even under continuous use.
Specifications
| Parameter | Details |
|---|---|
| Power Output | 220W Max / 150W RMS |
| Output Regulation | ≤ 2 dB (no load to full load at 1kHz) |
| Input Channels | 6 × Mic (0.65mV / 4.7kΩ) 2 × Aux (100mV / 470kΩ) |
| Frequency Response | 50Hz – 15kHz (±3dB) |
| Signal-to-Noise Ratio | ≥ 60dB |
| Tone Controls | Bass: ±10dB @ 100Hz Treble: ±10dB @ 10kHz |
| Line Output | 1V / 1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
| Power Supply | AC 220–240V, 50/60Hz or 24V DC |
| Power Consumption | Approx. 350VA |
| Dimensions (W×H×D) | 483 × 192 × 456 mm |
| Weight | Approx. 20 kg |
