TZA-2000:

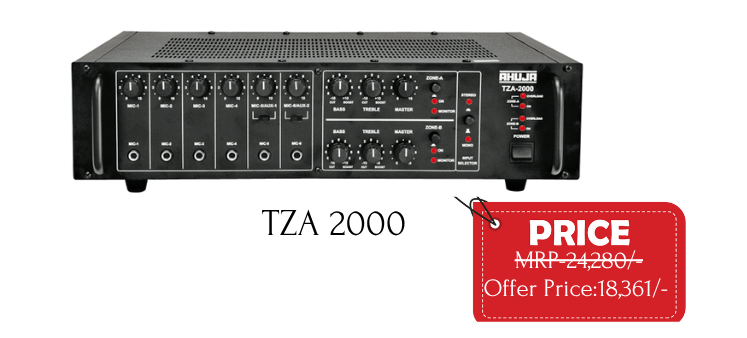

🔹 Ahuja TZA-2000 – 200 Watts 2-Zone PA Mixer Amplifier
Specifications
| Parameter | Details |
|---|---|
| Model | TZA-2000 |
| Type | 2-Zone PA Mixer Amplifier |
| Rated Output Power | 200 Watts RMS (100W + 100W at 10% THD) |
| Maximum Output Power | 300 Watts Peak |
| Output Regulation | ≤ 2 dB (no load to full load at 1 kHz) |
| Frequency Response | 50 Hz – 15,000 Hz (±3 dB) |
| Total Harmonic Distortion (THD) | ≤ 0.5% at 1 kHz |
| Signal-to-Noise Ratio | ≥ 60 dB |
| Input Channels | 4 Mic Inputs (0.65 mV / 4.7 kΩ) 2 Aux Inputs (100 mV / 470 kΩ) |
| Tone Controls | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
| Speaker Outputs | 4 Ω, 8 Ω, 70 V, and 100 V for each zone |
| Zones | 2 Independent Zones with ON/OFF switch |
| Protection | Resettable circuit breaker for overload and short circuit |
| Power Supply | AC: 220–240 V, 50/60 Hz DC: 24 V (2 × 12 V batteries) |
| Power Consumption | 450 VA (AC) / 6 A (DC) |
| Dimensions (W × H × D) | 450 × 150 × 350 mm |
| Weight | 18 kg |
Key Features
200-watt amplifier ideal for schools, halls, and small auditoriums.
Dual-zone operation for separate sound control in two areas.
Multiple mic and aux inputs with individual volume control.
Bass and treble tone adjustment.
Built-in protection against overload and short circuits.
Operates on AC mains or 24 V DC battery backup.
Compact, durable, and easy to install.
