TZA - 4000 DPM :

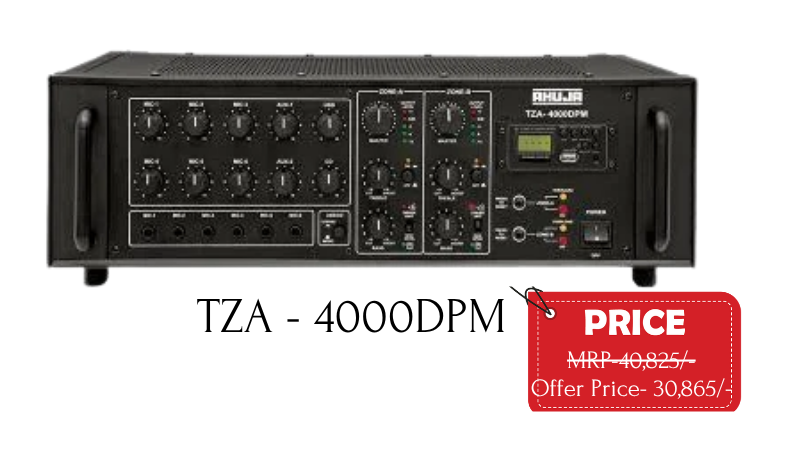

Ahuja TZA-4000DPM High Power PA Mixer Amplifier
Features
400 Watts RMS high-power PA mixer amplifier designed for professional and large-scale installations.
Built-in digital media player with USB, SD/MMC card reader, Bluetooth, and FM tuner.
Six microphone inputs and two auxiliary inputs for versatile source connectivity.
Balanced line input and output for linking with external amplifiers or mixers.
Bass and Treble controls provided for tonal adjustment.
Output level LED indicators for precise level monitoring.
Built-in protection circuitry for short circuit, overload, and temperature control.
Operates on both AC mains and 36V DC supply, suitable for mobile or stationary setups.
Rugged, heavy-duty design ensuring long-lasting, reliable performance.
Specifications
| Parameter | Details |
|---|---|
| Power Output | 600W Max / 400W RMS |
| Output Regulation | ≤ 2 dB (no load to full load at 1kHz) |
| Input Channels | 6 × Mic (0.65mV / 4.7kΩ) 2 × Aux (100mV / 470kΩ) |
| Frequency Response | 50Hz – 15kHz (±3dB) |
| Signal-to-Noise Ratio | ≥ 60dB |
| Tone Controls | Bass: ±10dB @ 100Hz Treble: ±10dB @ 10kHz |
| Line Output | 1V / 1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
| Power Supply | AC 220–240V, 50/60Hz or 36V DC |
| Power Consumption | Approx. 700VA |
| Dimensions (W×H×D) | 483 × 192 × 456 mm |
| Weight | Approx. 25 kg |
