TZA - 7000 DP :

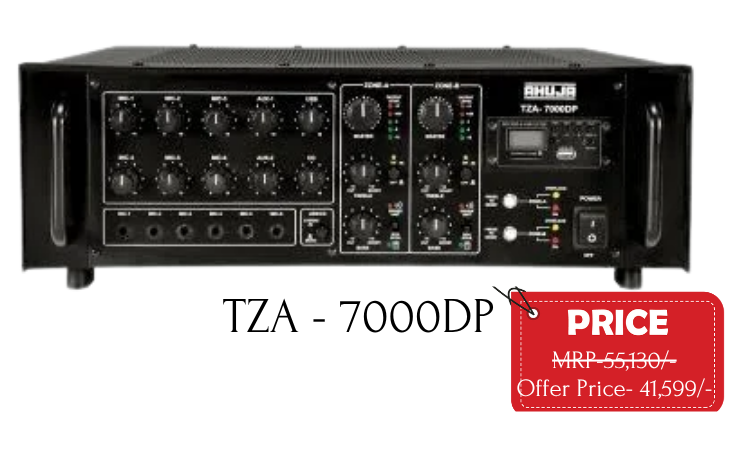

Ahuja TZA-7000DP High Power PA Mixer Amplifier
Features
700 Watts RMS high-power PA mixer amplifier for large installations and outdoor sound reinforcement.
Built-in digital MP3 player with USB, SD/MMC card reader, Bluetooth, and FM tuner.
Six microphone inputs and two auxiliary inputs for versatile connectivity.
Two balanced line inputs and one balanced line output for connecting external processors or amplifiers.
Bass and Treble controls for fine sound adjustment.
LED-based output level indicator for easy monitoring.
Built-in protection circuits against short circuit, overload, and overheating.
Operates on AC mains or 36V DC (Car Battery Operation).
Rugged, efficient cooling and durable design for long-term professional use.
Specifications
| Parameter | Details |
|---|---|
| Power Output | 1000W Max / 700W RMS |
| Output Regulation | ≤ 2 dB (no load to full load at 1kHz) |
| Input Channels | 6 × Mic (0.65mV / 4.7kΩ) 2 × Aux (100mV / 470kΩ) |
| Frequency Response | 50Hz – 15kHz (±3dB) |
| Signal-to-Noise Ratio | ≥ 60dB |
| Tone Controls | Bass: ±10dB @ 100Hz Treble: ±10dB @ 10kHz |
| Line Output | 1V / 1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
| Power Supply | AC 220–240V, 50/60Hz or 36V DC |
| Power Consumption | Approx. 1100VA |
| Dimensions (W×H×D) | 483 × 192 × 456 mm |
| Weight | Approx. 27 kg |
