UBA 800:

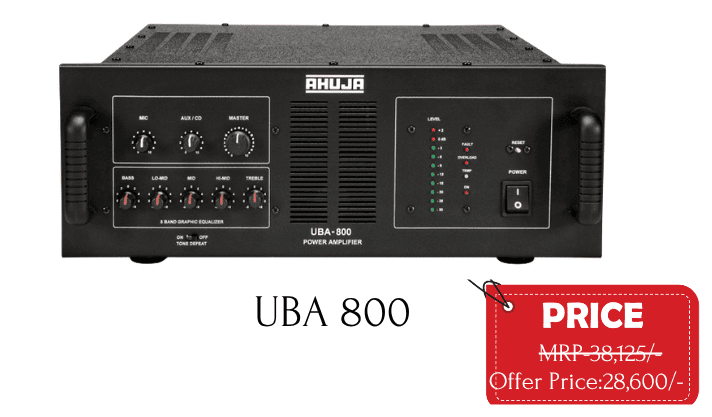

🔊 Ahuja UBA-800 Power Amplifier
✅ Key Features
Designed for PA and DJ applications — compatible with microphone, mixer, CD player, keyboard, etc.
Built-in 5-band graphic equaliser with Tone ON/OFF switch for precise tonal control.
Line input and line output provided for cascading or connecting multiple amplifiers.
Speaker matching taps for 2 Ω, 4 Ω and 8 Ω loads for flexible speaker setup.
Built-in protection against high AC mains voltage, overload, and short circuit.
Indicator LEDs for power, signal, temperature, overload, and fault.
Rugged construction with efficient cooling and durable performance.
📊 Specifications
| Parameter | Details |
|---|---|
| Power Output | 800 W RMS / 1150 W Max at 10% THD |
| Output Regulation | ≤ 2 dB (no load to full load @ 1 kHz) |
| Input Channels | Mic: 1 mV / 4.7 kΩ Aux 1: 100 mV / 470 kΩ Aux 2: 250 mV / 20 kΩ CD: 250 mV / 20 kΩ Line: 1 V / 10 kΩ |
| Frequency Response | 50 Hz – 18,000 Hz (±3 dB) |
| Signal to Noise Ratio | ≥ 60 dB |
| Tone Controls | Bass (100 Hz): ±8 dB Lo-Mid (315 Hz): ±8 dB Mid (1 kHz): ±8 dB Hi-Mid (3.1 kHz): ±8 dB Treble (10 kHz): ±8 dB |
| Line Output | 1 V / 1 kΩ |
| Speaker Output Options | 2 Ω, 4 Ω, 8 Ω |
| Power Supply | AC 220–240 V, 50/60 Hz |
| Power Consumption | Approx. 1500 VA |
| Dimensions (W × H × D) | 482 mm × 186 mm × 530 mm |
| Weight | Approx. 32 kg |
