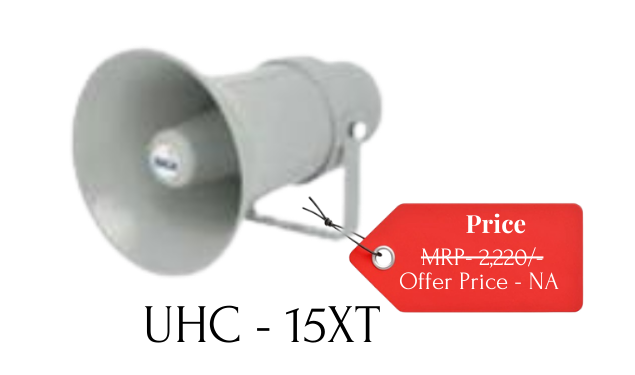

UHC - 15XT:
🔹 Ahuja UHC-15XT – PA Horn Speaker (100 V Line / Transformer)
Key Features
Designed for 100 V line public address systems — easy integration into long-distance PA setups
High-efficiency horn delivers clear and intelligible speech output
Selectable power taps to match speaker load and coverage area
Weather-resistant construction for dependable outdoor use
UV-protected ABS body for durability in harsh conditions
Adjustable heavy-duty metal mounting bracket for flexible installation
Ideal for schools, factories, stations, temples, and open areas
Specifications
| Parameter | Details |
|---|---|
| Model | UHC-15XT |
| Type | PA Horn Speaker with 100 V Line Transformer |
| Rated Power (100 V line) | 3 W / 6 W / 10 W (selectable) |
| Transformer Taps | 3 W, 6 W, 10 W |
| Nominal Impedance | 100 V line equivalent |
| Frequency Response | ~300 Hz – 10,000 Hz |
| Sensitivity (SPL) | ~102 dB (1 W / 1 m) |
| Maximum SPL | ~115–118 dB |
| Material | UV-protected ABS plastic |
| Weather Protection | Weather-resistant |
| Mounting | Adjustable metal bracket |
| Cable Length | ~0.6 m |
| Dimensions | ~250 mm (Diameter) × ~230 mm (Depth) |
| Weight | ~1.2 kg |
