UHC - 30XT:

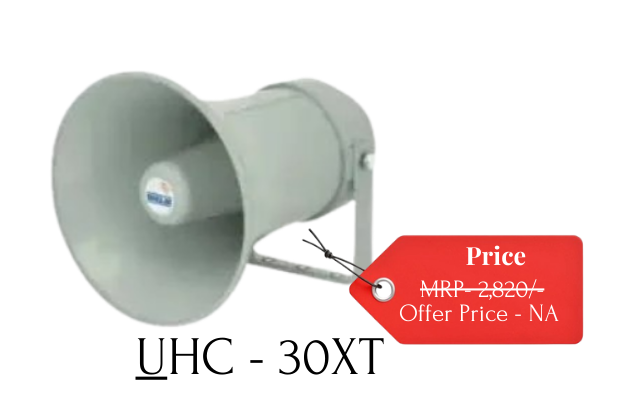

🔹 Ahuja UHC-30XT – PA Horn Speaker (100 V Line / Transformer)
Key Features
Designed for 100 V line public address systems — ideal for large installations
High-efficiency horn delivers clear and intelligible voice output
Weather-resistant construction for outdoor use
UV-stabilized ABS body for long-term durability
Adjustable heavy-duty mounting bracket for flexible positioning
Suitable for schools, factories, stations, open grounds, and outdoor PA
Specifications
| Parameter | Details |
|---|---|
| Model | UHC-30XT |
| Type | PA Horn Speaker (with 100 V line transformer) |
| Rated Power (100 V line) | 10 W / 20 W / 30 W (selectable) |
| Transformer Taps | 10 W, 20 W, 30 W |
| Impedance (Nominal) | 100 V line equivalent |
| Frequency Response | 240 Hz – 10,000 Hz |
| Sensitivity (SPL) | 108 dB (1 W/1 m) |
| Maximum SPL | ~123 dB |
| Material | High-impact UV-protected ABS plastic |
| Weather Protection | Weather-resistant design |
| Mounting | Adjustable metal mounting bracket |
| Cable | 0.6 m speaker cable |
| Dimensions | Approx. 313 mm (Dia) × 285 mm (Depth) |
| Weight | Approx. 2.0 kg |
