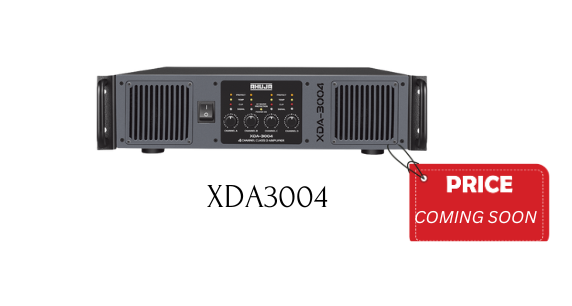

QUAD CHANNEL POWER AMPLIFIER:
Key Features
19-inch rack-mountable chassis (standard 2U height ~104 mm) for professional installation.
Class D audio output stage — efficient, lighter heat load.
Built-in limiter (ON/OFF) to protect speakers and amplifier from overload/clipping.
Toroidal transformer-based power supply for stable regulation and lower noise/hum.
Selectable input sensitivity (0 dBu = 775 mV & 4 dBu = 1.23 V) to accommodate different preamp levels.
Balanced (XLR) and unbalanced (¼″/6.3 mm phone) inputs. Outputs via Speakon 4-way and heavy-duty binding posts.
Comprehensive protection circuits: DC offset, short circuit, thermal, over-voltage, HF fault, clip monitoring.
Cooling via variable-speed DC fans with temperature sensing.
Key Specifications
| Parameter | Value |
|---|---|
| Continuous Rated Power (Stereo/Mono) | 8 Ω : 2 × 1,350 W RMS 4 Ω : 2 × 2,400 W RMS |
| THD + N | < 0.1% |
| Frequency Response (-1 dB) | 20 Hz – 20,000 Hz |
| Low-Pass Filter (selectable) | 80 Hz/120 Hz @ 24 dB/octave |
| Power Bandwidth (0.5% THD) | 20 Hz – 20,000 Hz |
| Input Impedance | 10 kΩ unbalanced, 20 kΩ balanced |
| Signal-to-Noise Ratio | > 100 dB |
| Channel Separation | > 65 dB (at 1 kHz) |
| Damping Factor | > 1000 (at 8 Ω) |
| Slew Rate | 20 V/µs |
| Rated Power Consumption | 5,500 VA @ 220-240V ~ 50/60 Hz |
| Dimensions | ~22.10 kg |
