XDA 5002:

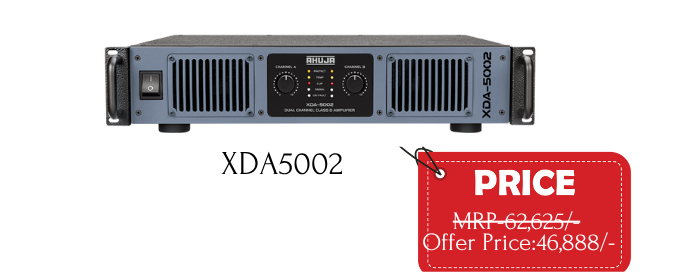

🎚️ Ahuja XDA-5002 – Class D Power Amplifier
🔧 Key Features
Professional 2-channel Class D power amplifier for high-power PA and sound reinforcement systems.
Rugged 19″ rack-mountable metal chassis, 2U height.
High-current toroidal transformer power supply for stable performance and low noise.
Balanced XLR and ¼″ jack inputs for each channel (parallel connection possible).
Speakon and binding post outputs for professional speaker connectivity.
Built-in limiter to protect the amplifier and speakers from clipping and overload.
Stereo / Mono mode selection via rear-panel switch.
Selectable input sensitivity – 0.775 V or 1.23 V.
Low-pass filter switchable at 80 Hz or 120 Hz for subwoofer applications.
Comprehensive protection circuitry – thermal, overload, short circuit, DC fault, and over-voltage.
Dual variable-speed cooling fans with temperature sensing for continuous reliable operation.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Amplifier Class | Class D (Direct-Coupled) |
| Continuous Power Output | 1100 W × 2 @ 8 Ω • 1800 W × 2 @ 4 Ω |
| Frequency Response | 20 Hz – 20 kHz |
| THD + Noise | < 0.1% |
| Signal-to-Noise Ratio | > 100 dB |
| Channel Separation | > 65 dB (at 1 kHz) |
| Damping Factor | > 1000 (at 8 Ω) |
| Input Sensitivity | 0.775 V / 1.23 V selectable |
| Input Connectors | Balanced XLR and ¼″ Jack |
| Output Connectors | Speakon 4-pole and Binding Post |
| Operating Modes | Stereo / Mono |
| Low-Pass Filter | 80 Hz / 120 Hz (selectable) |
| Cooling | Dual temperature-controlled fans |
| Power Consumption | Approx. 5500 VA (full load) |
| Dimensions (W × H × D) | 482 × 104 × 438 mm |
| Weight | ≈ 22 kg |
